“Amazingly beautiful… but especially a window that becomes a design object. It occurs to me that as Starck juicer has become an icon of 90s design by adding to an object of common use the added value of design, so, after LIVE, a window will no longer be just a frame but a style choice. Compliments to who has inspired and created it!”

This is one of the comments posted on the website of the companies selected for the Shanghai Expo 2010 Italy Innovators Initiative sponsored by the Ministry of Innovation.

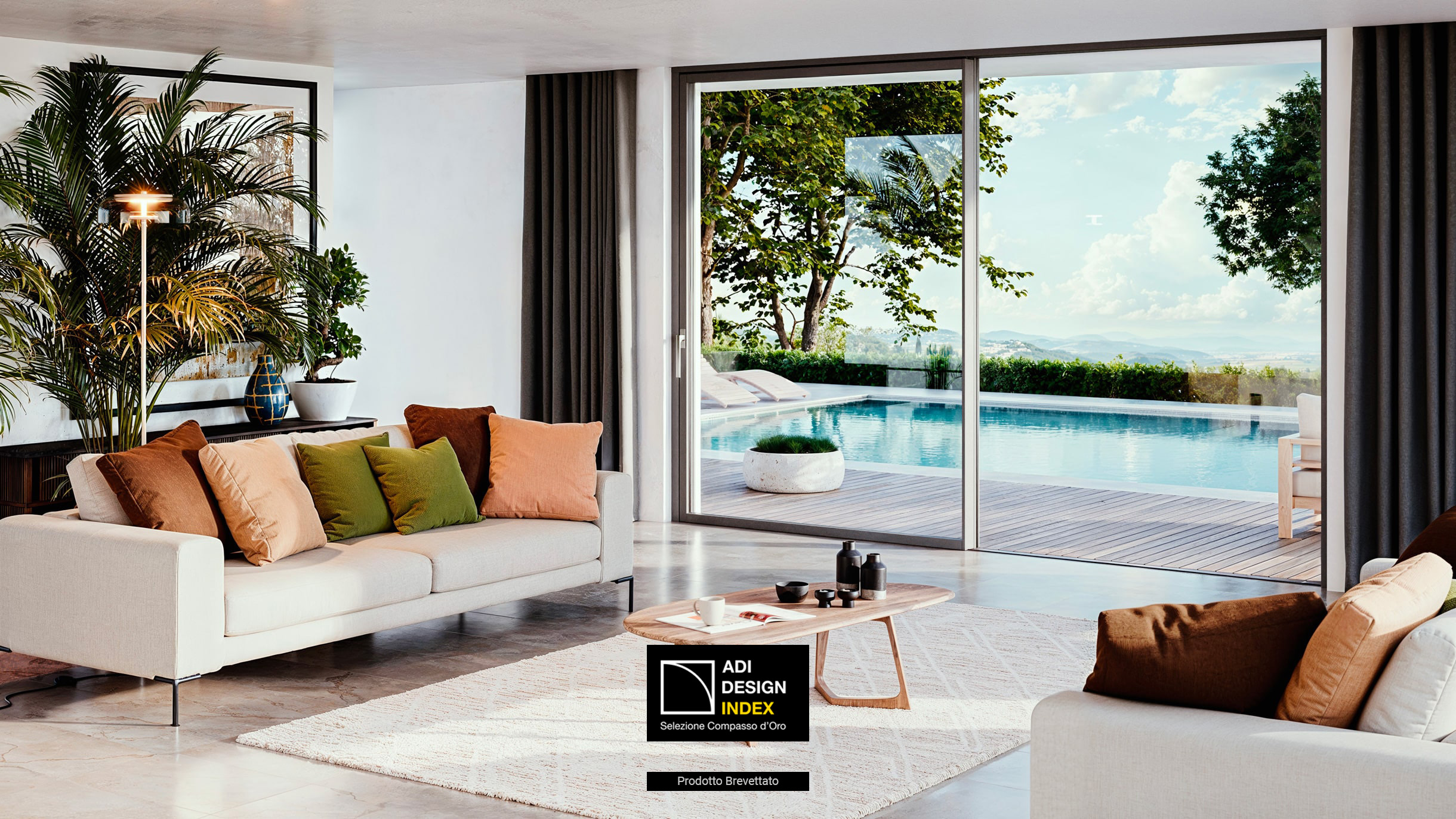

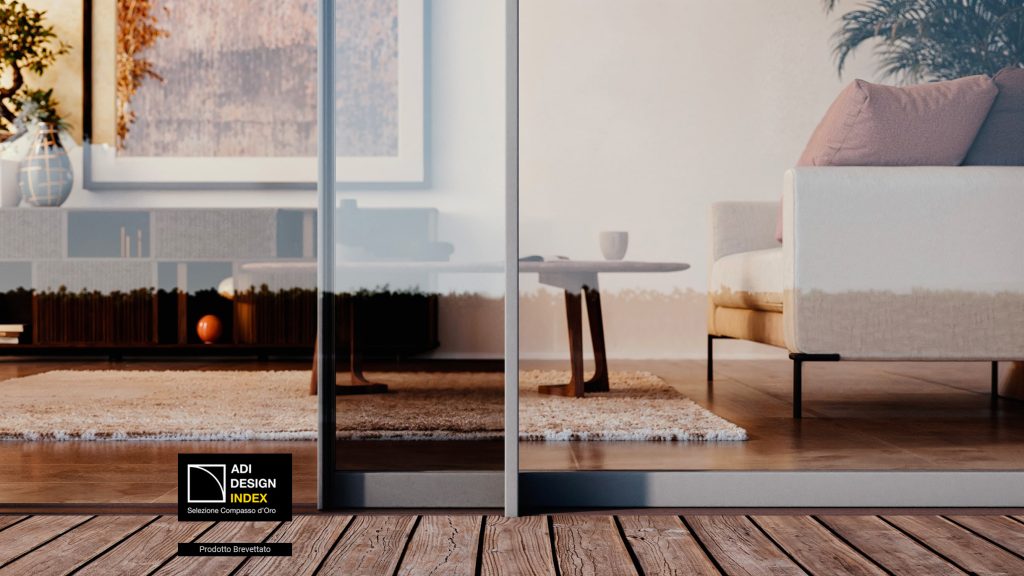

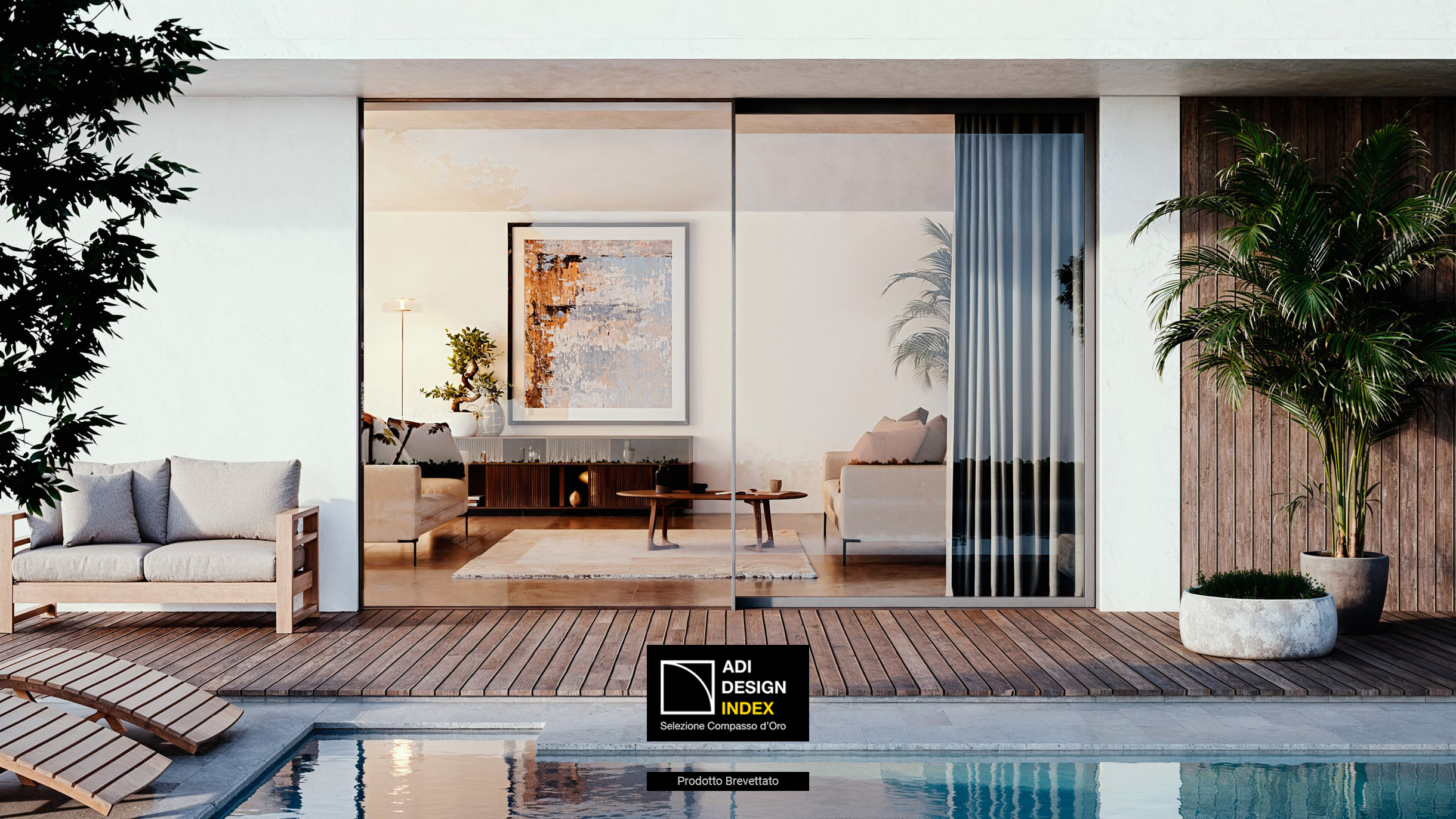

It ‘s a synthesis, but very significant, of a project born with this ambition that the events are confirming. From the selection for the Shanghai Expo to the Red Dot product design 2010 and ADI Design Index 2009, Compasso d’Oro selection, international awards never before assigned to a window.

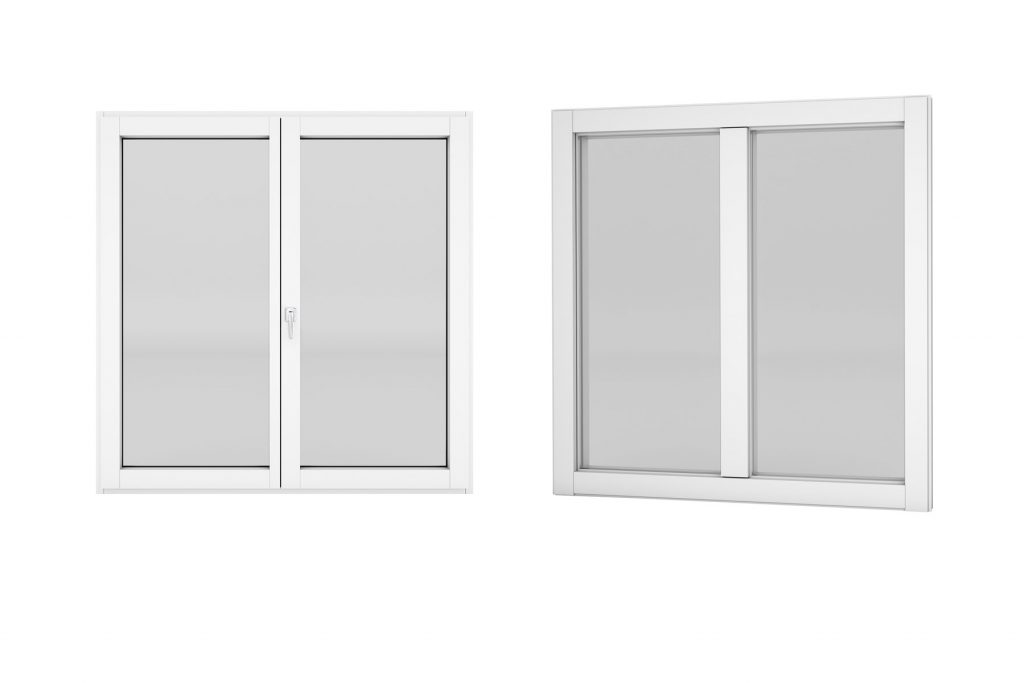

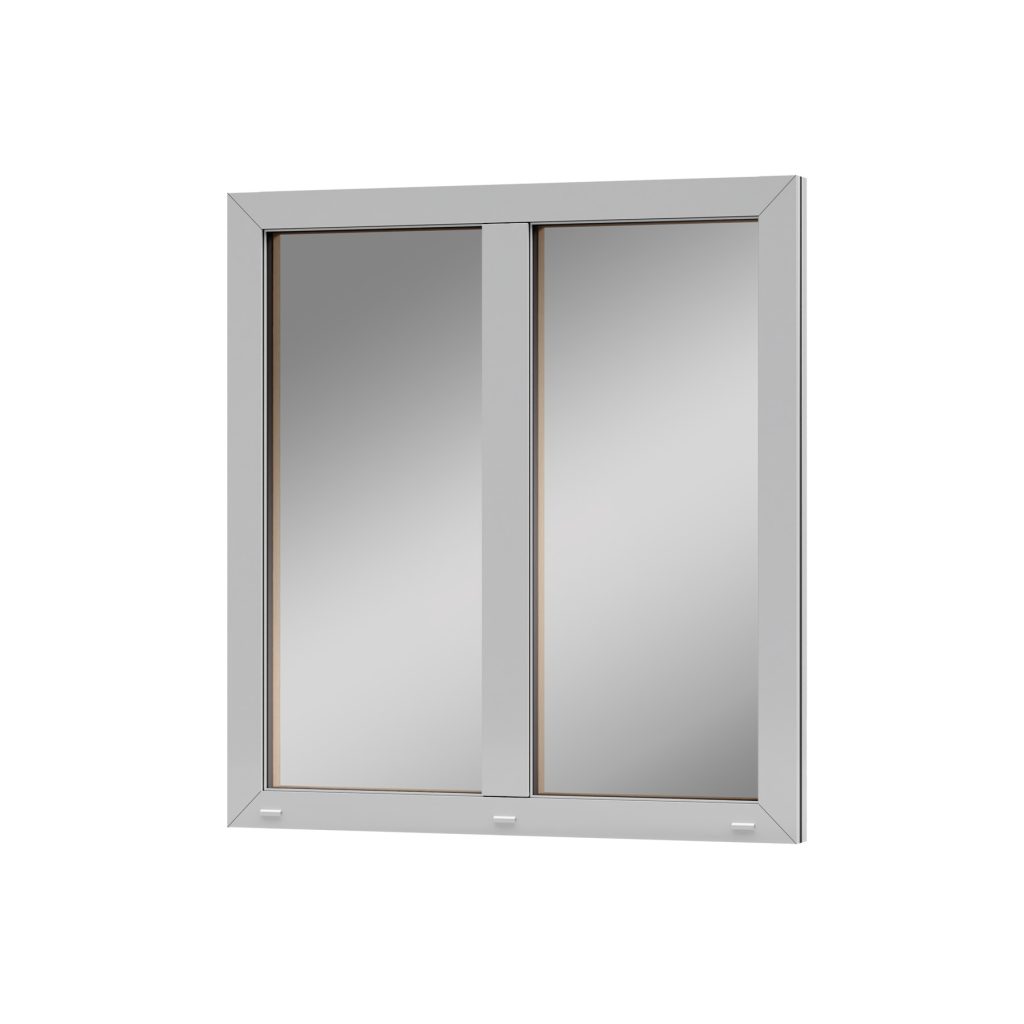

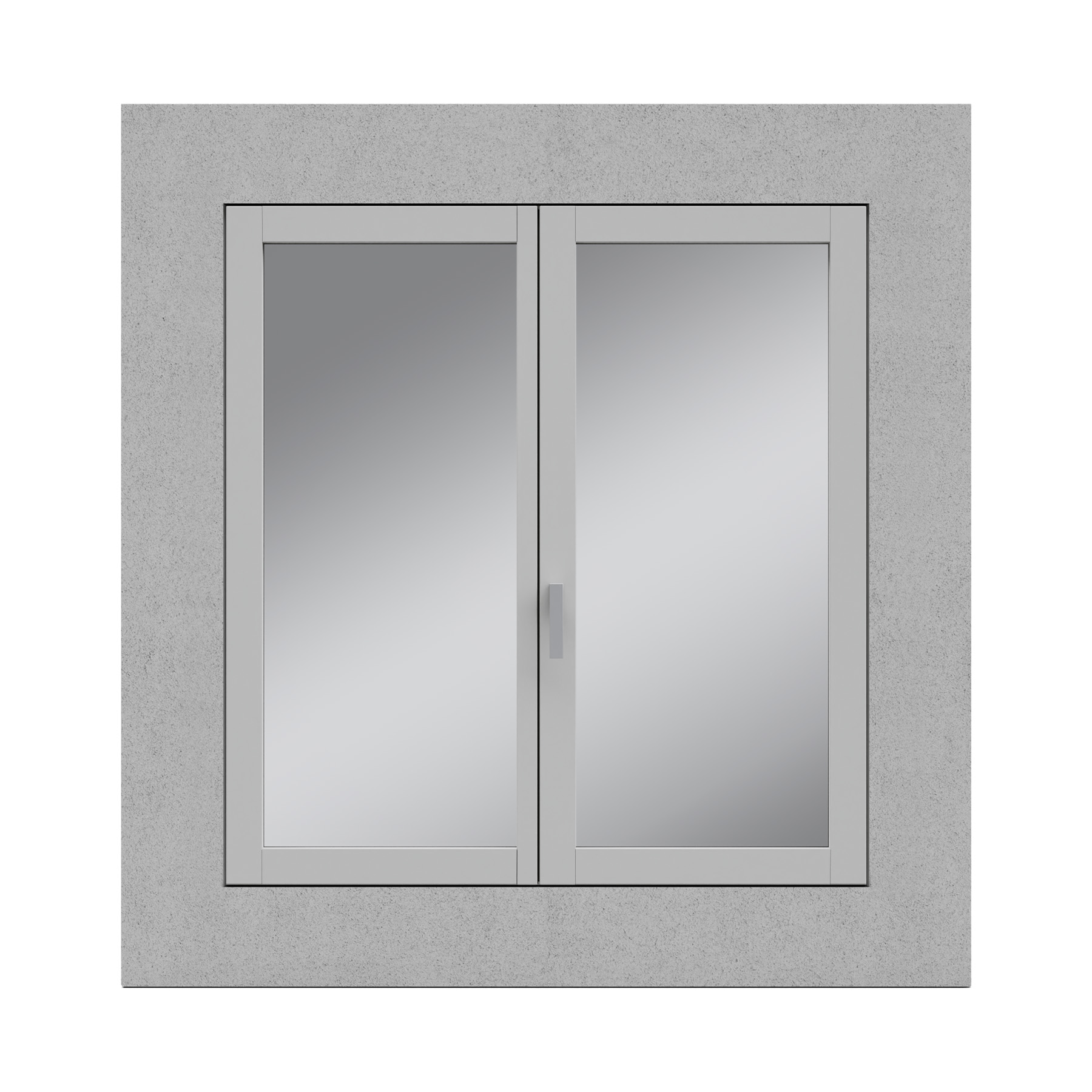

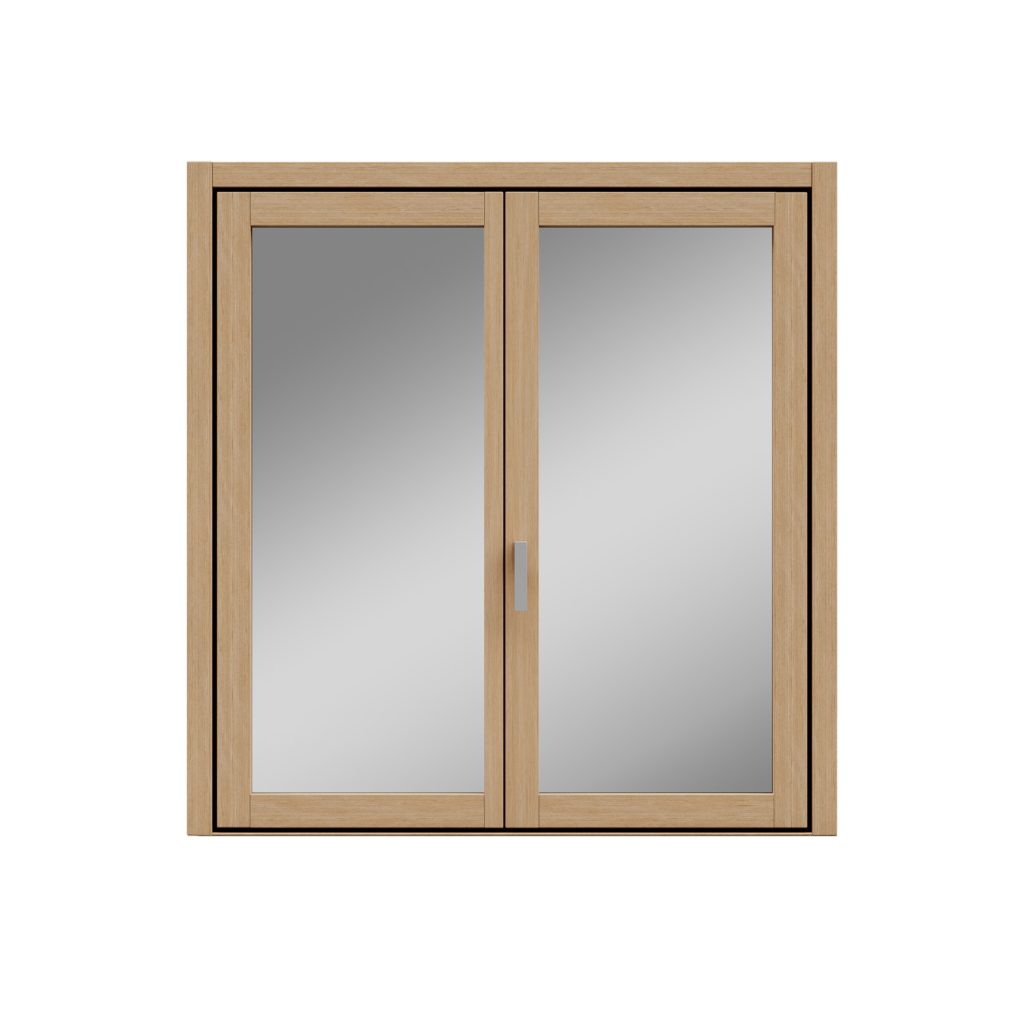

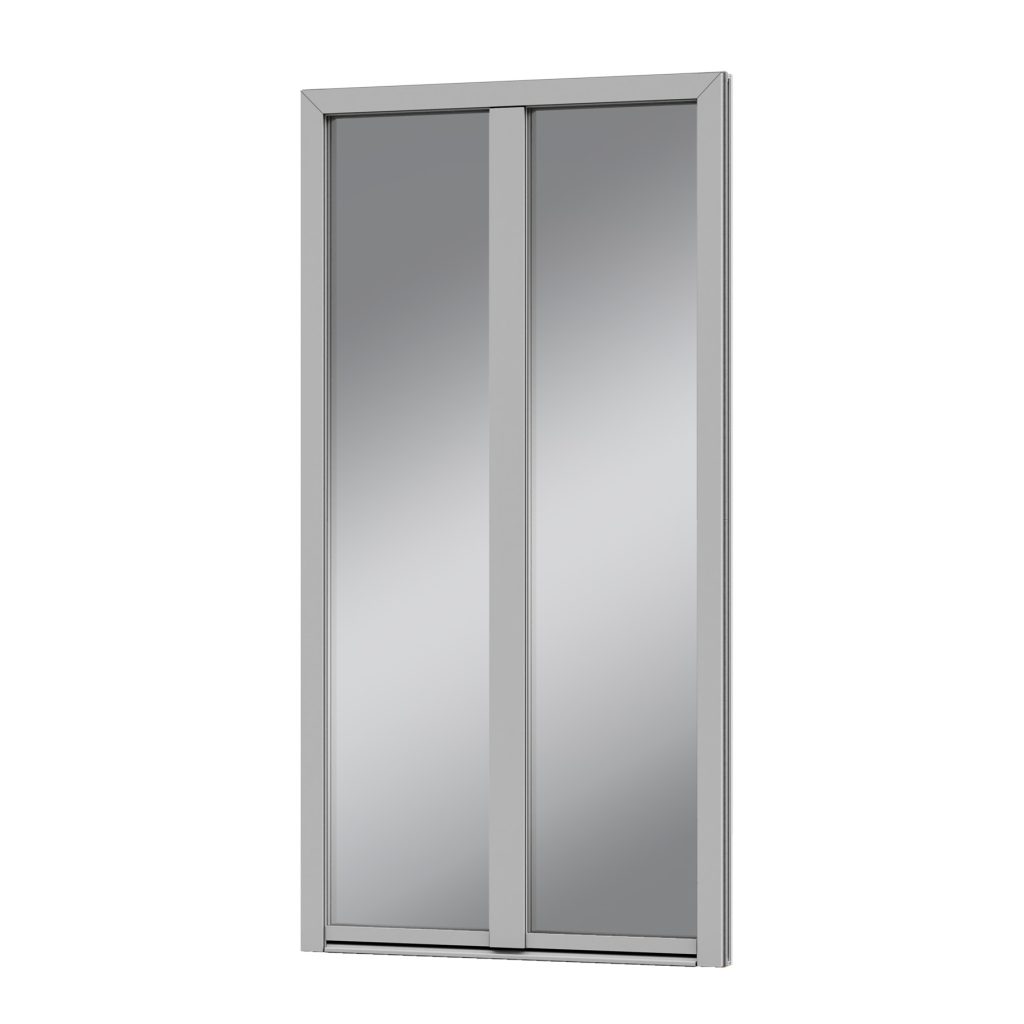

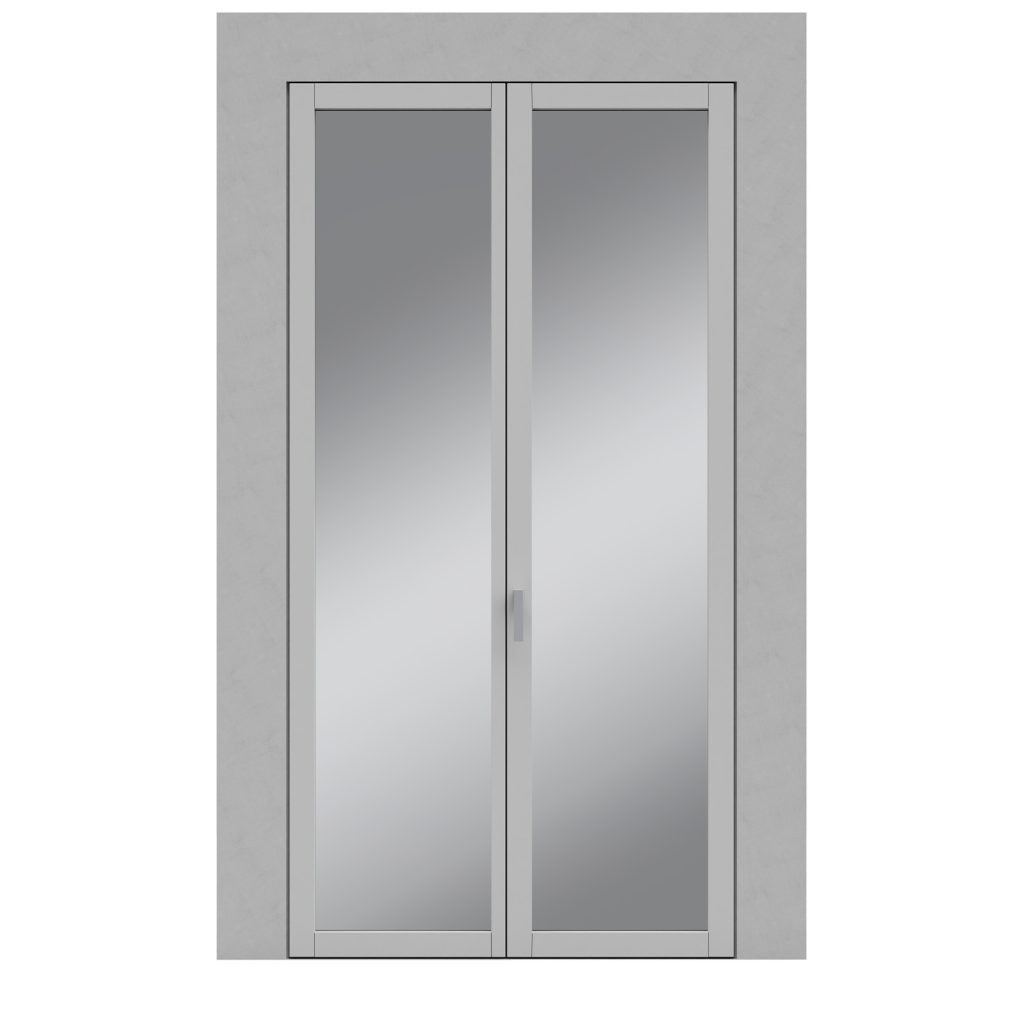

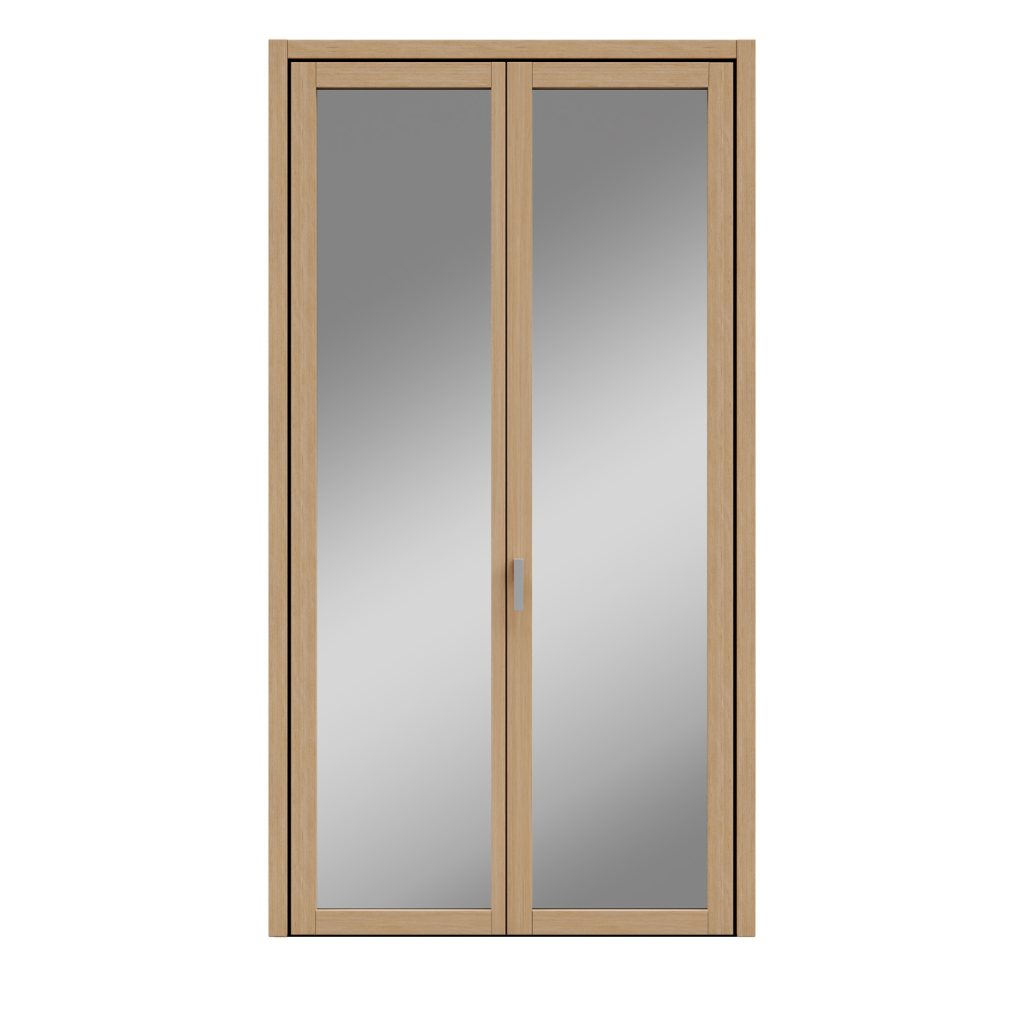

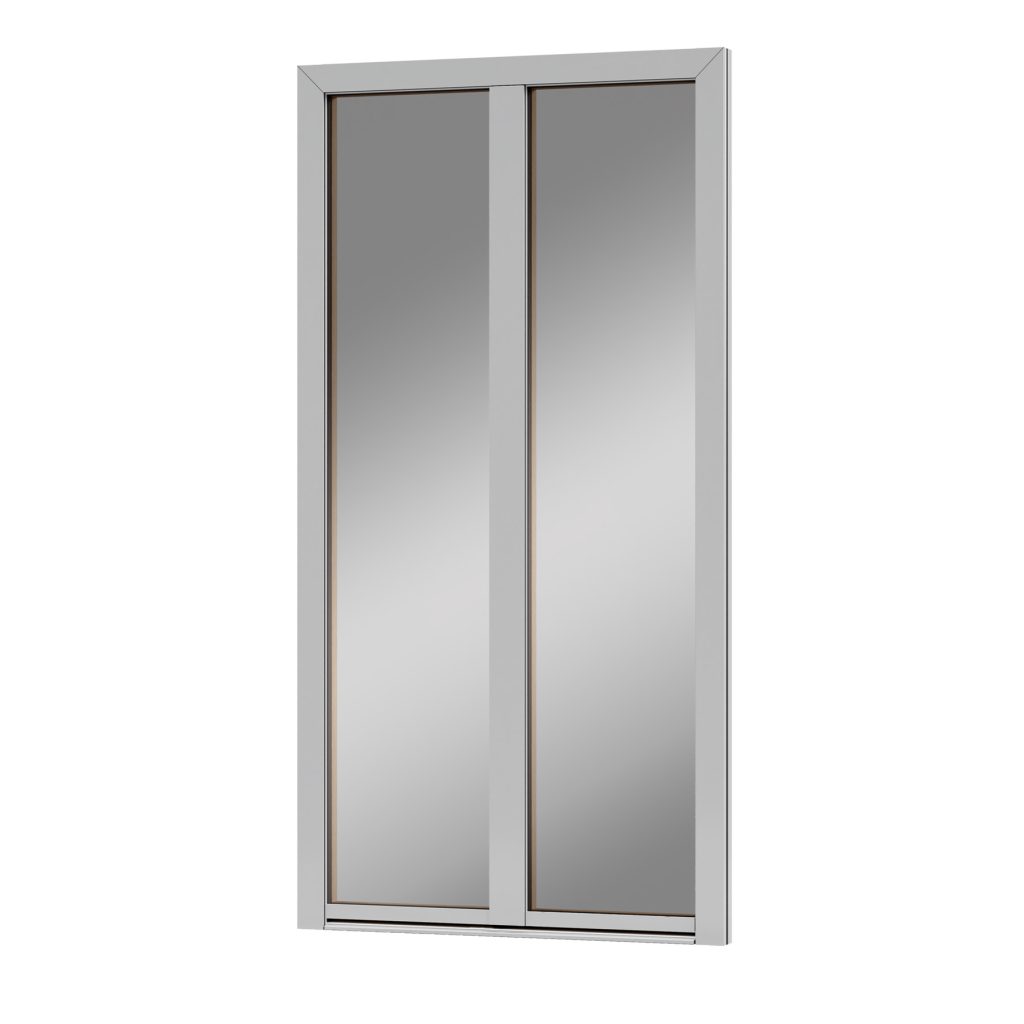

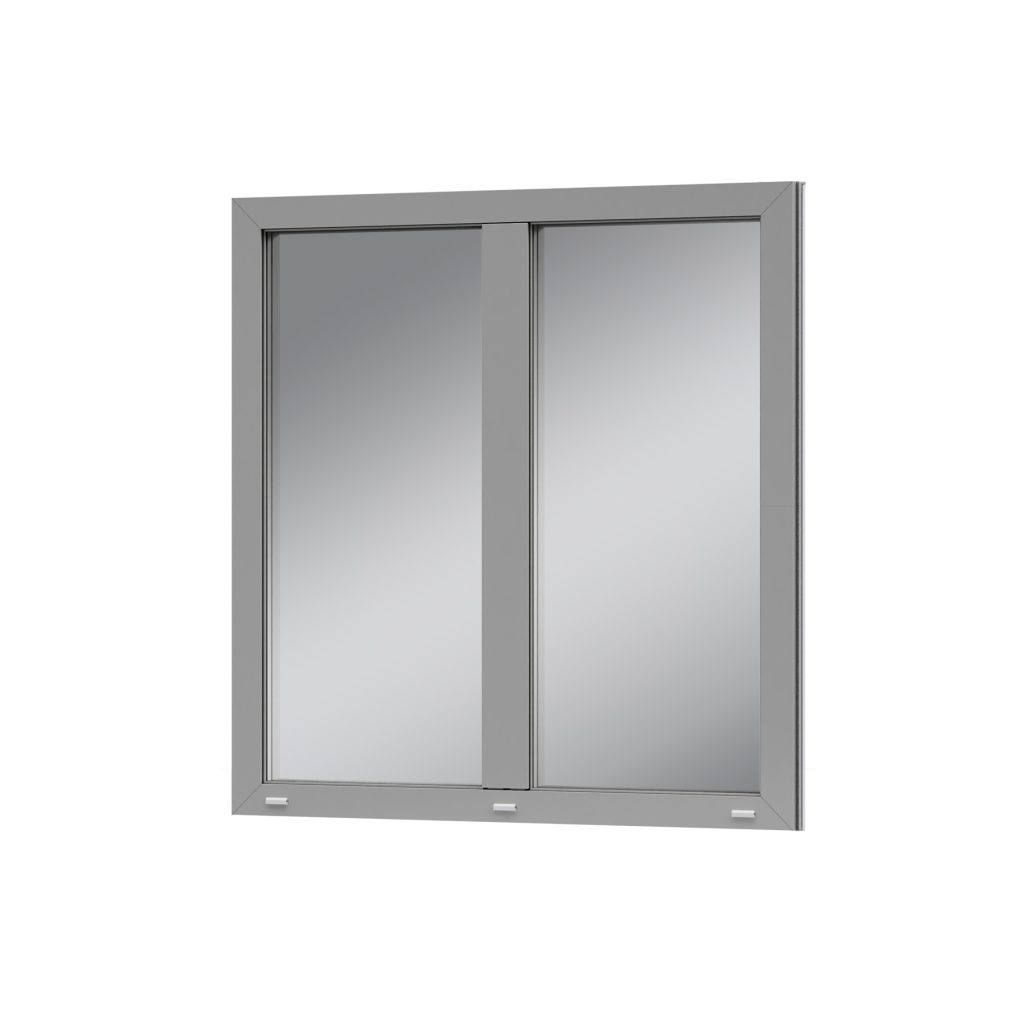

Live window, protected by a patent, is only the sach from inside and only glass from outside, no frames, no trims, no hinges, in all the opening solutions. Essentiality with high design content, leading to more light, more heat in winter, cooler in summer, lack of maintenance.

Show eLive video —

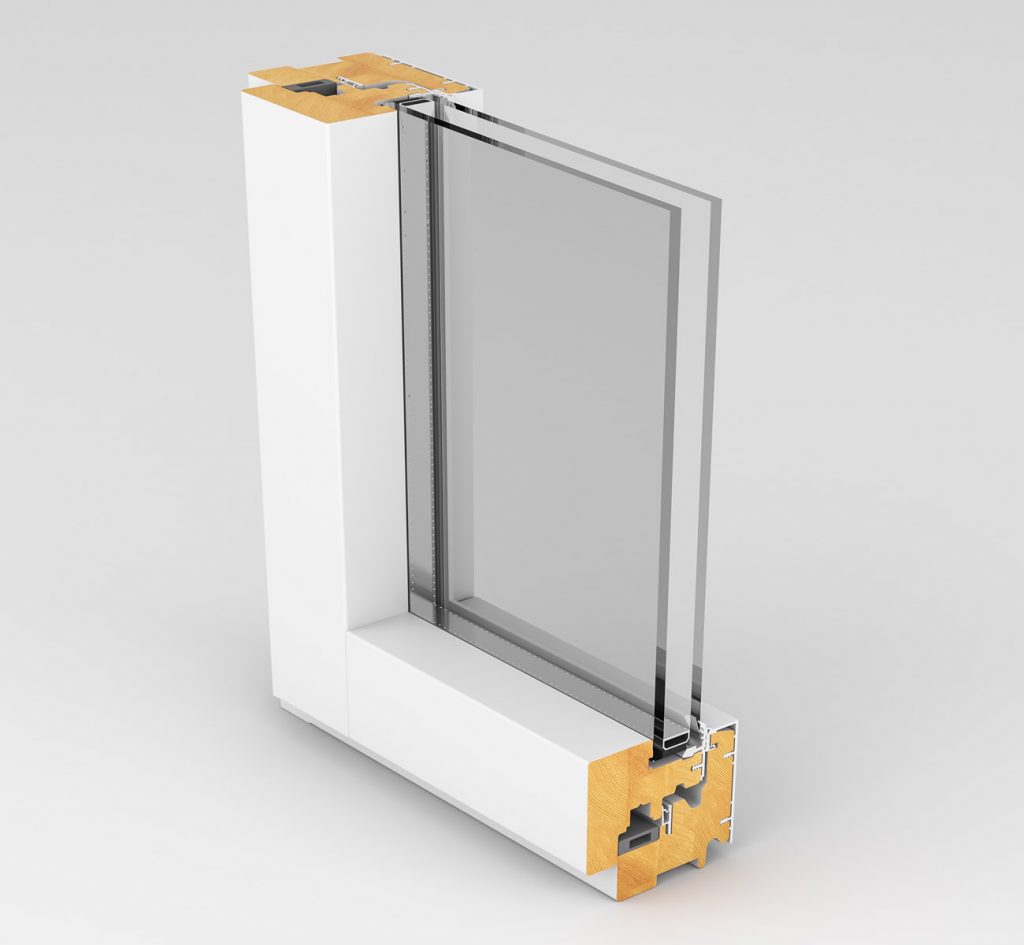

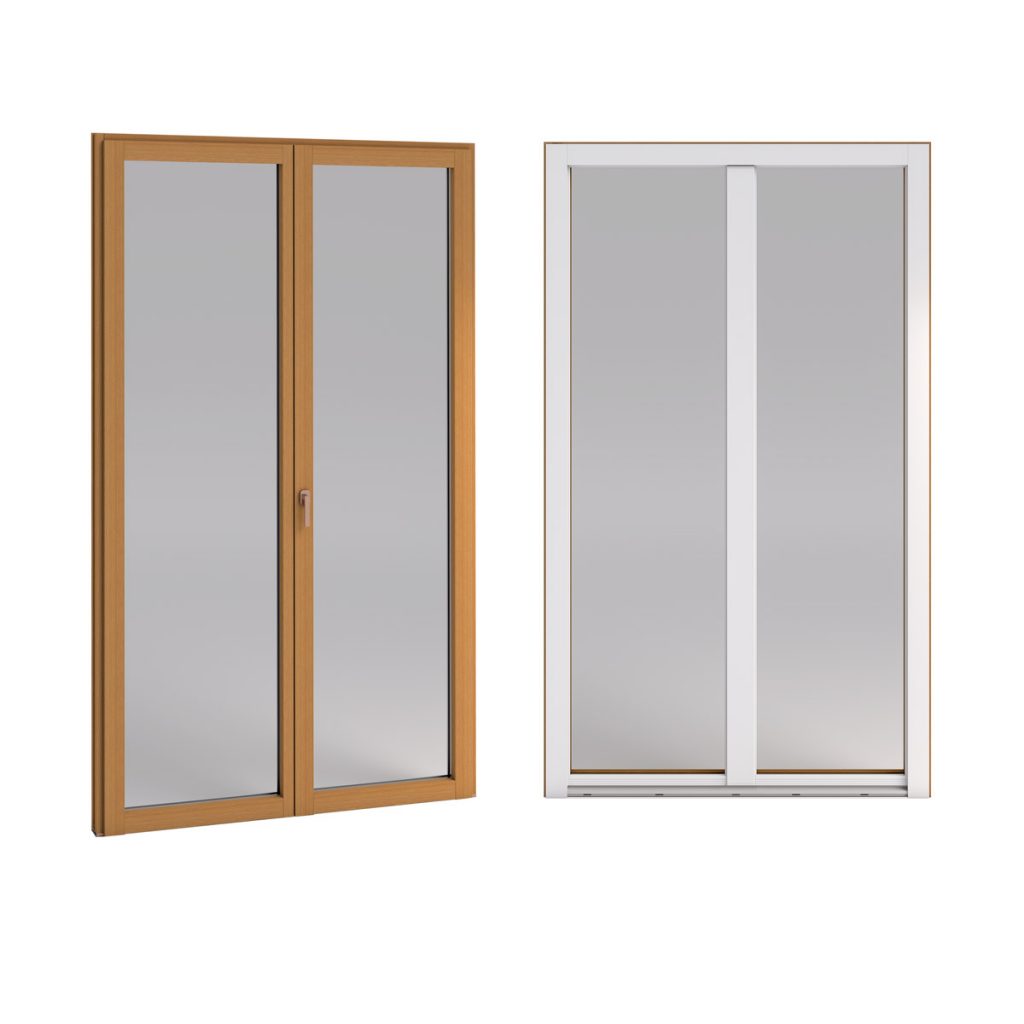

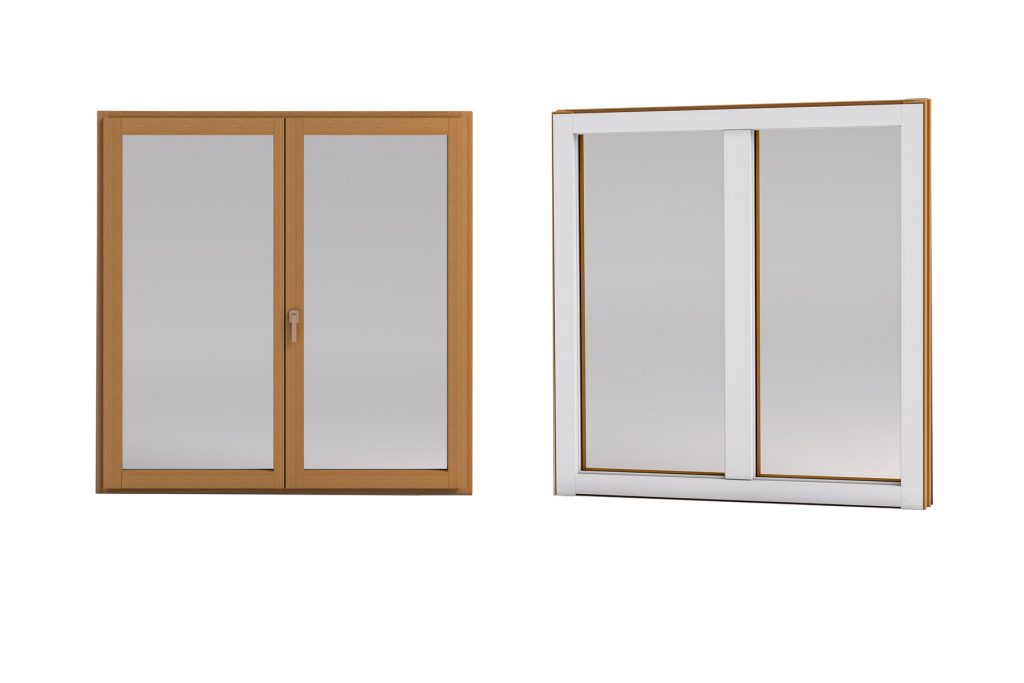

eLive A+A

Standards:

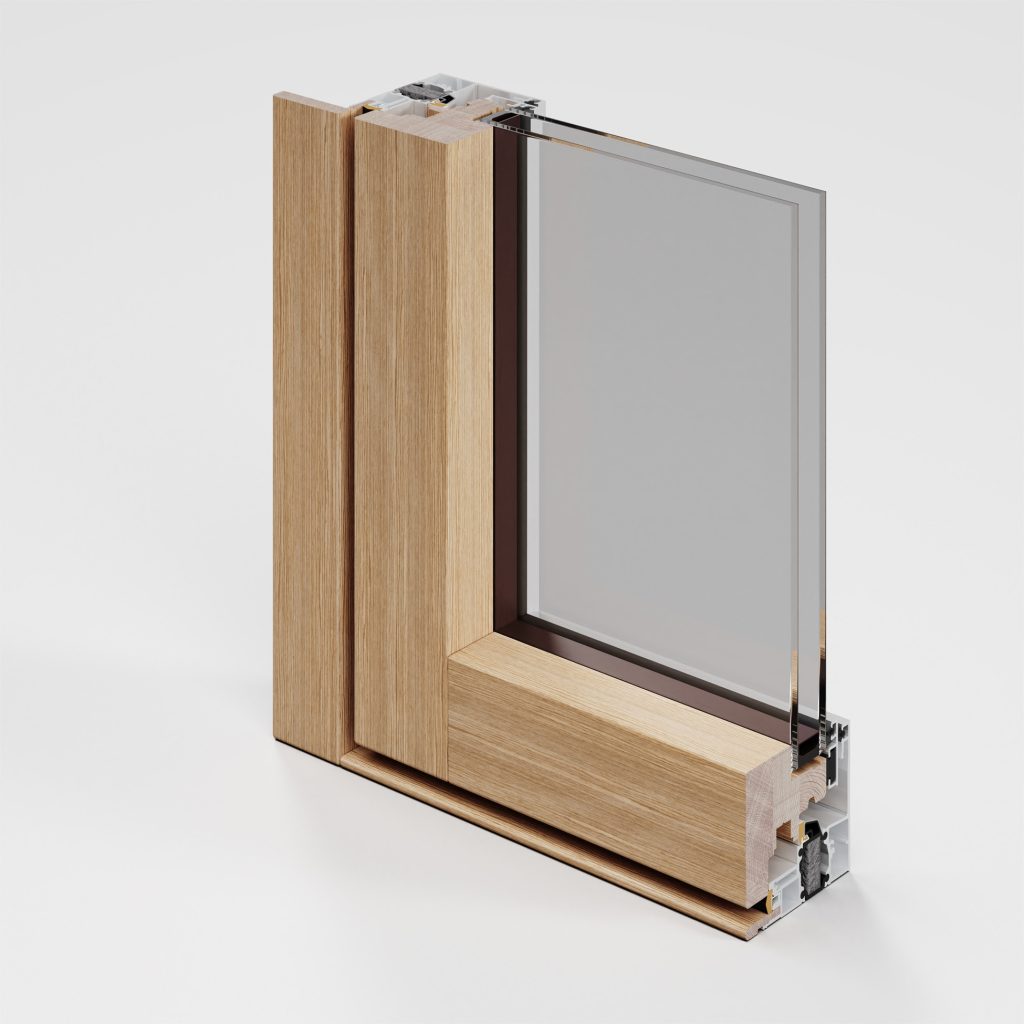

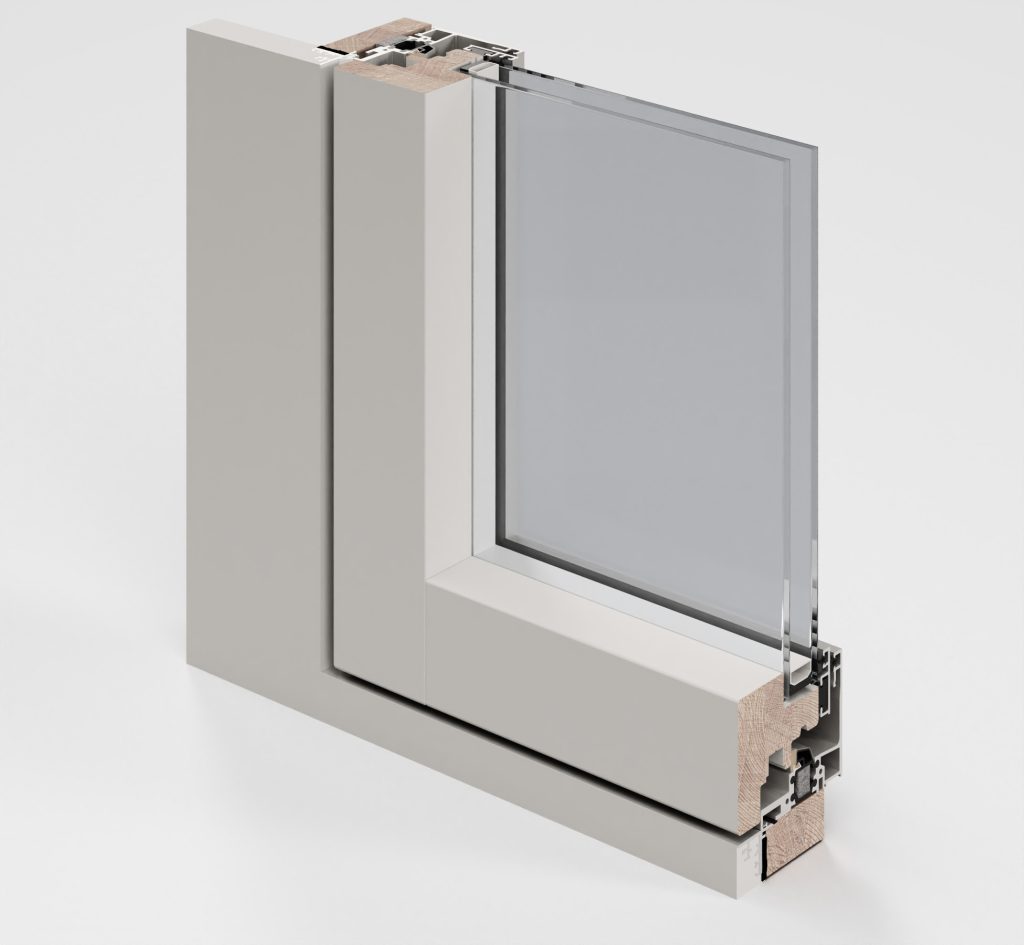

  • Frame sec. 71 x 82,5mm wood+aluminum
  • Sash sec. 70 x 67mm wood+aluminum
  • Insulated panel glass 33.1/16/33.1 b.e.
  • 2 Gaskets
  • Sash & tilt with invisible hinges
  • Uf 1,4 W/mqK
  • Ug from 1.4 to 0.6 W/mqK
  • Uw from 1.7 to 1.0 W/mqK *
  • Rw from 39 to 42dB

_______
* On 2 sashes window 1230×1480.

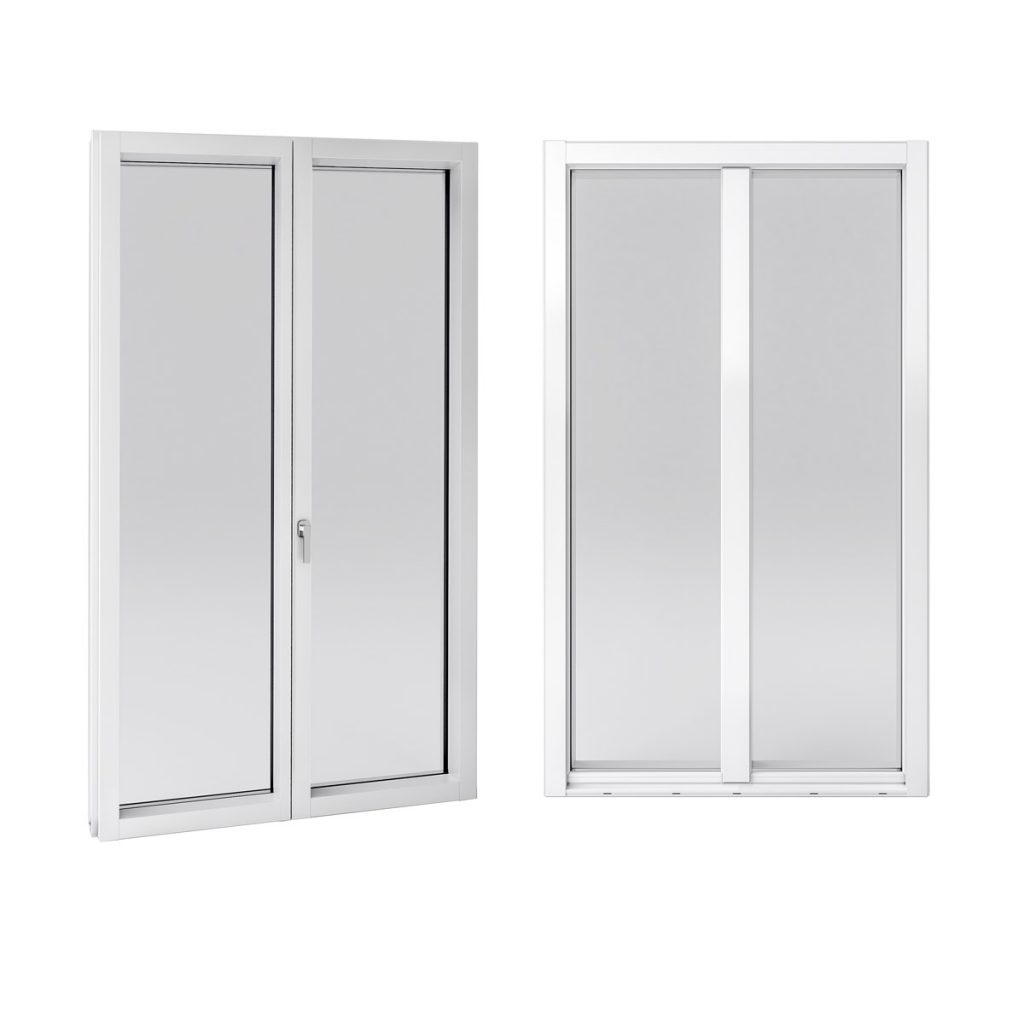

eLive A+P

Standards:

  • Frame sec. 71 x 82,5mm wood+aluminum
  • Sash sec. 70 x 67mm wood+pvc
  • Insulated panel glass 33.1/16/33.1 b.e.
  • 2 Gaskets
  • Sash & tile with invisible hinges

  • Uf 1,3 W/mqK
  • Ug from 1.4 to 0.6 W/mqK
  • Uw from 1.7 to 0,97 W/mqK *
  • Rw da 39 a 42dB

_______
* On 2 sashes window 1230×1480.

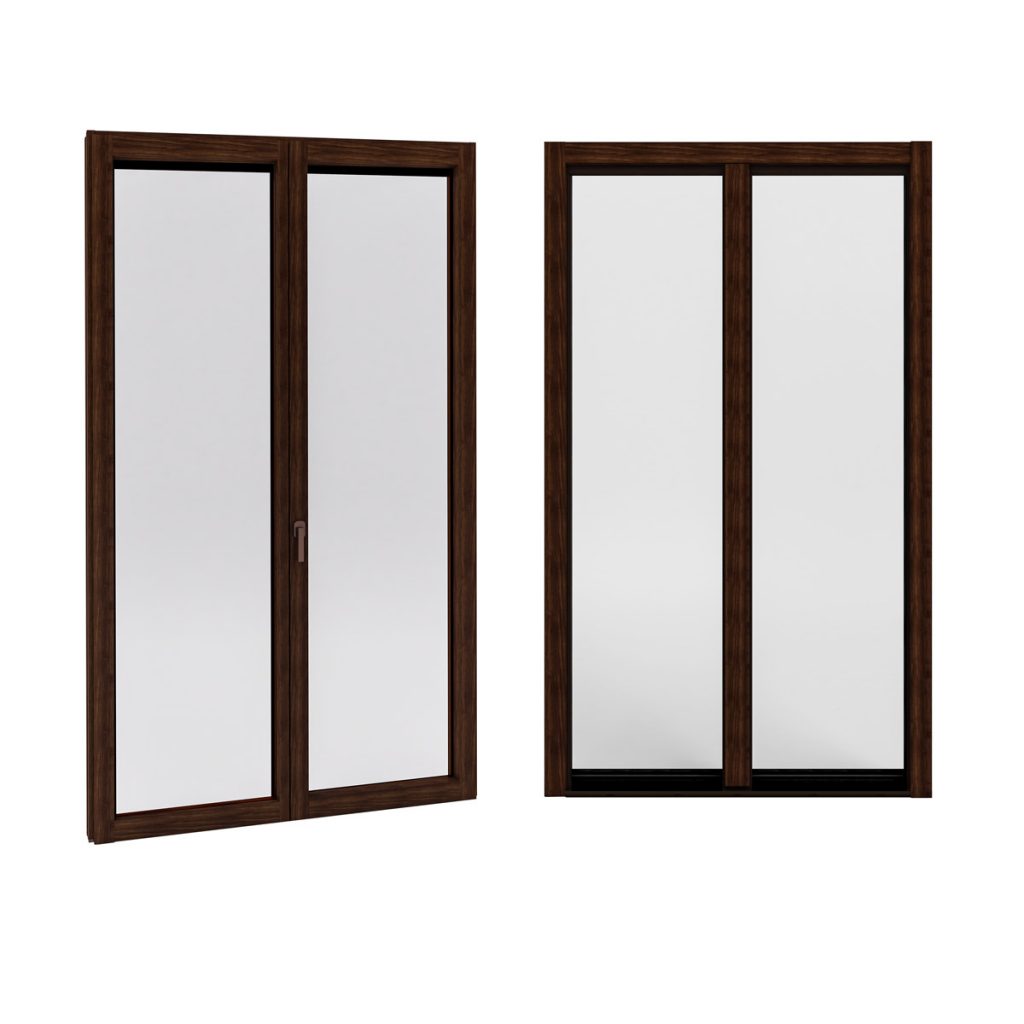

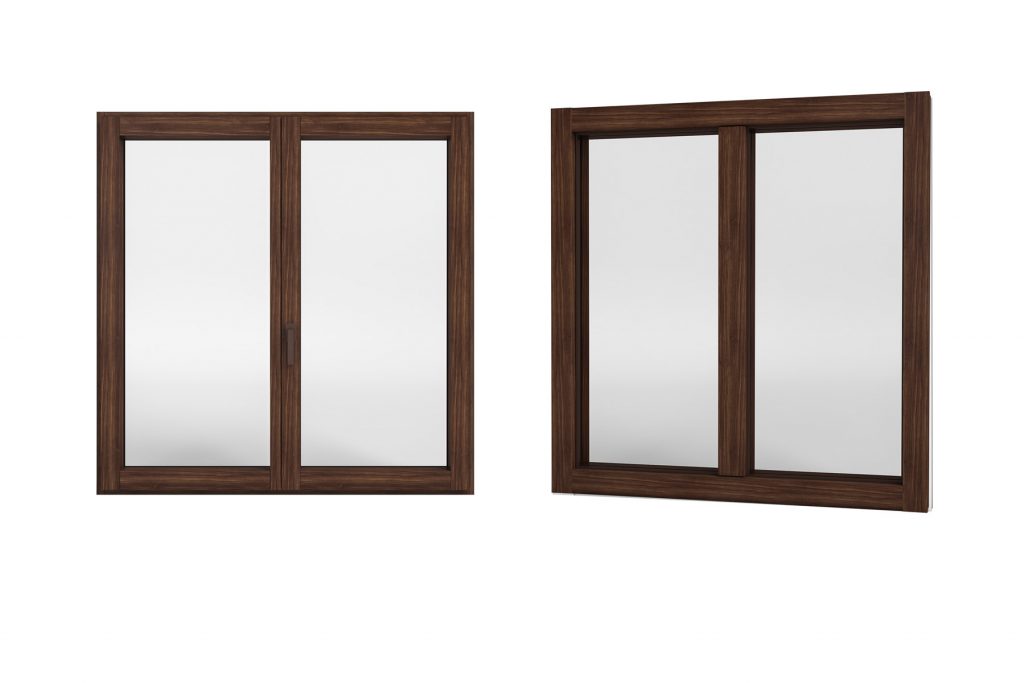

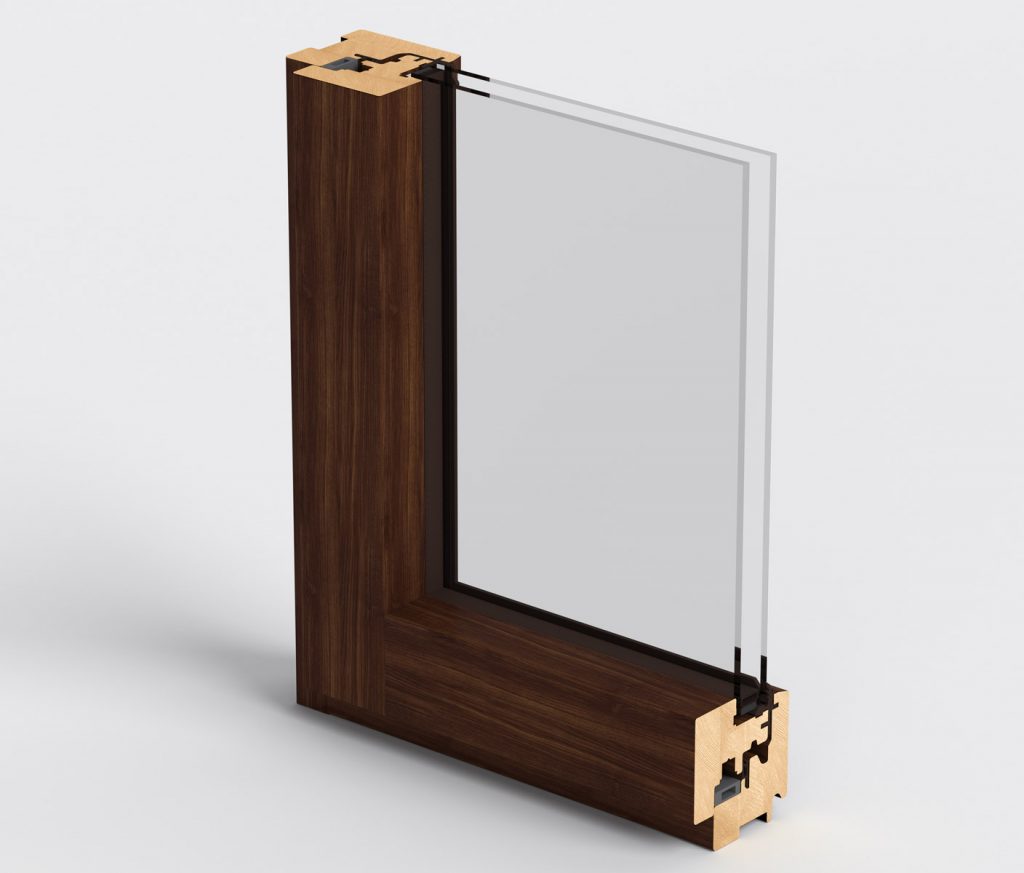

eLive L+P

Standards:

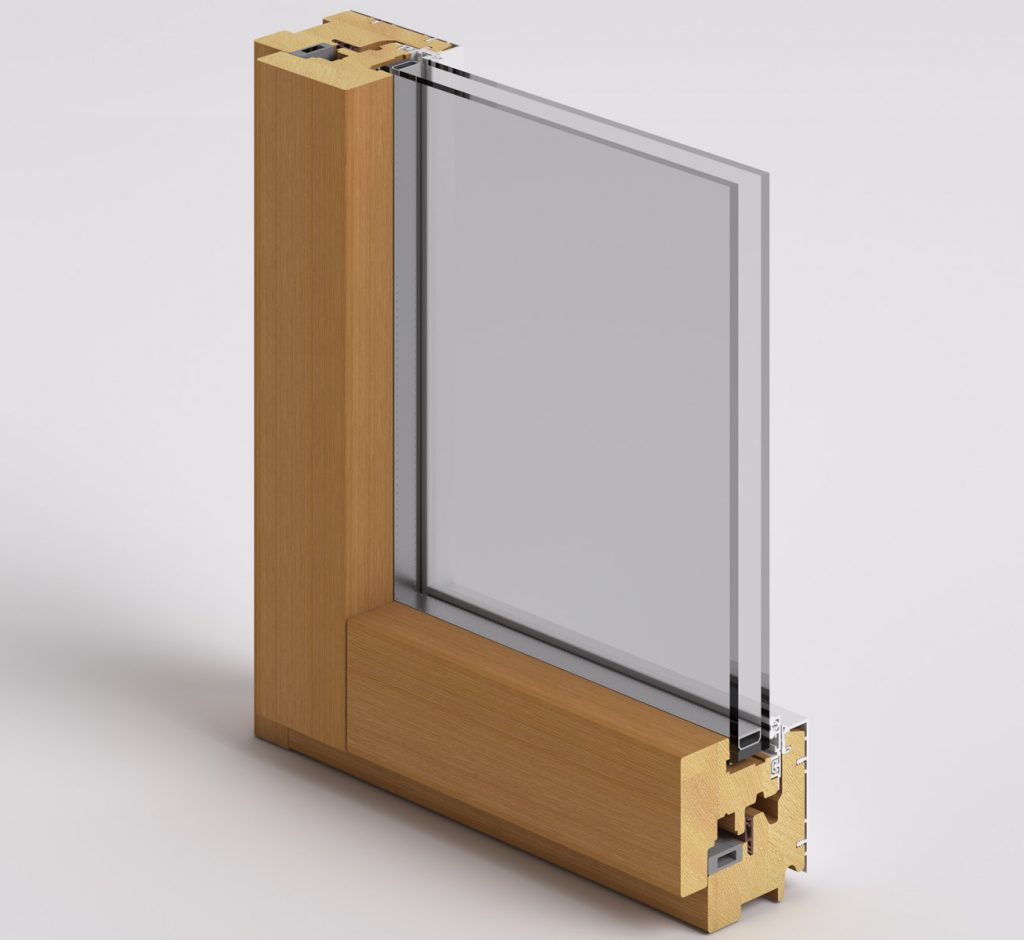

  • Frame sec. 68 x 80mm wood
  • Sash sez. 70 x 67mm wood+pvc
  • Insulated panel glass 33.1/16/33.1 b.e.
  • 2 Gaskets
  • Sash & Tilt with invisible hinges
  • Uf 1,3 W/mqK
  • Ug from 1.4 to 0.6 W/mqK
  • Uw from 1.7 to 0,97 W/mqK *
  • Rw from 39 to 42dB

_______
* On 2 sashes window 1230×1480.

openings

The images of the openings are by way of example, they do not necessarily refer to the collection visited.

lift & slide / various possible alternatives

slide & fold / varoius possible alternatives

tilt & slide / various possible alternatives

swing window / alternative

essences and colors

pine

white oak

brushed pine

brushed white oak

meranti

Pdf Documents

green thinking

Design seen as an instrument for making the spaces surrounding us more attractive and liveable is the significant value Giorgio Senatore also ascribes to the space common to all, namely the Earth. Responsibility in the use of resources.
